1.5mm Three Track Aluminium Sliding Windows Deep Grey Frame Non Broken Bridge

Non Broken Bridge Three Track Aluminum Sliding Windows Deep Grey Frame

Specifications:

1. Superelevation drop (31mm) high and low rail design;

2. The inner fan is embedded and sealed, which is more sealed, beautiful and comfortable;

3. Realize the indoor disassembly and assembly of the inner fan, which is safe and convenient;

4.. The upper rail adopts guide pulley to prevent swing and fall off, and the lower rail adopts 80kg/120kg high-load pulley;

5. Stainless steel slide rail: smooth, high-end and durable;

6. The fixed crimping is flush with the frame, and the indoor large crimping highlights the high-end;

7. 5mm+ 12a + 5mm hollow glass is provided as standard

Aluminum Sliding Windows:

The difference between the three track sliding window and the ordinary double track sliding window lies in the track. Three rails are applicable to three or more windows. It can overlap all window sashes on one window sash through sliding rails, so that two-thirds of the space can be opened at once, so that better ventilation conditions can be obtained indoors, and smooth indoor air circulation can be ensured.

Because there are three tracks, the upper and lower pulleys play a guiding role. The internal bearings and aluminum blocks can make the pulleys slide stably. The opening and closing are smooth and silent, without noise, and the opening and closing are convenient. The sliding door of the three tracks has good sealing performance. It is difficult for dust and moisture to enter the room, and the sound insulation and heat insulation effects are also very good.

Although the three rail sliding window has many advantages, there are also several considerations when selecting it. Next, Yiju Door&Window Technology Co., Ltd. will introduce to you.

The first thing to pay attention to is quality. The three track sliding window on the market is made of ordinary aluminum alloy or recycled aluminum. It is recommended to select the bridge cutoff primary aluminum alloy.

Glass Specification:

Single-Pane Glass: Simple and Cost Efficient
Due to lower costs, single-pane windows are great for garages, tool-sheds, and other non-heated outbuildings. Also, when single-pane windows get broken, they are less expensive to repair as you only need one pane of glass. If energy efficiency is a concern, dual- or triple-pane glass options are a wiser choice.

Dual-Pane Glass: The New Standard
Double glazing consists of two glass panes which are joined together usually through an aluminium spacer or a warm-edge spacer (polyamide profile) and sealed around with a special glue. They offer significantly higher thermal insulation and sound insulation compared to single glazing in which only one glass pane is applied.

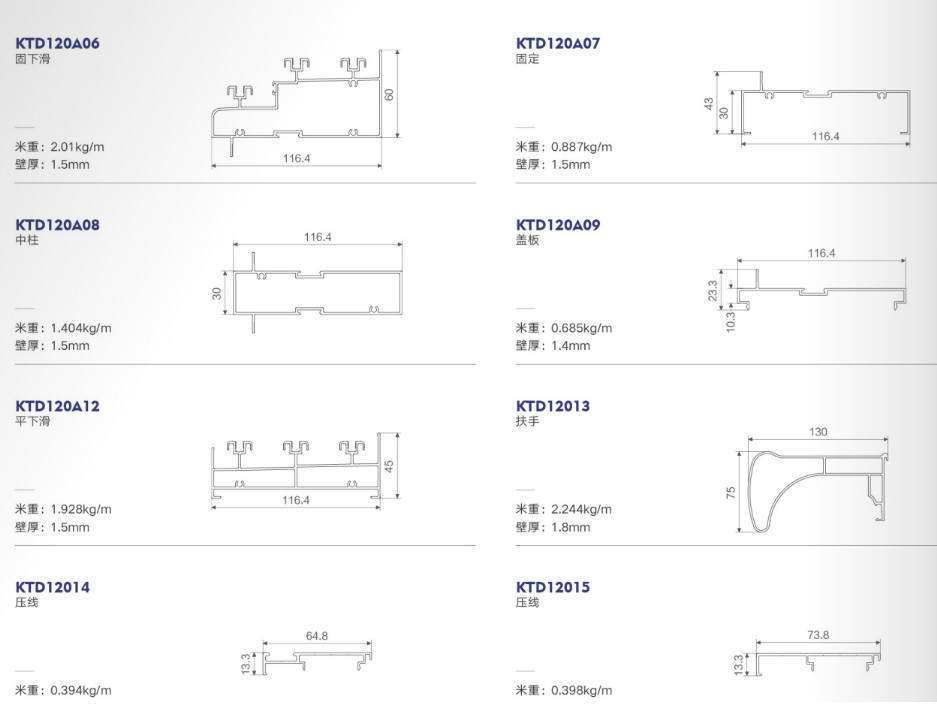

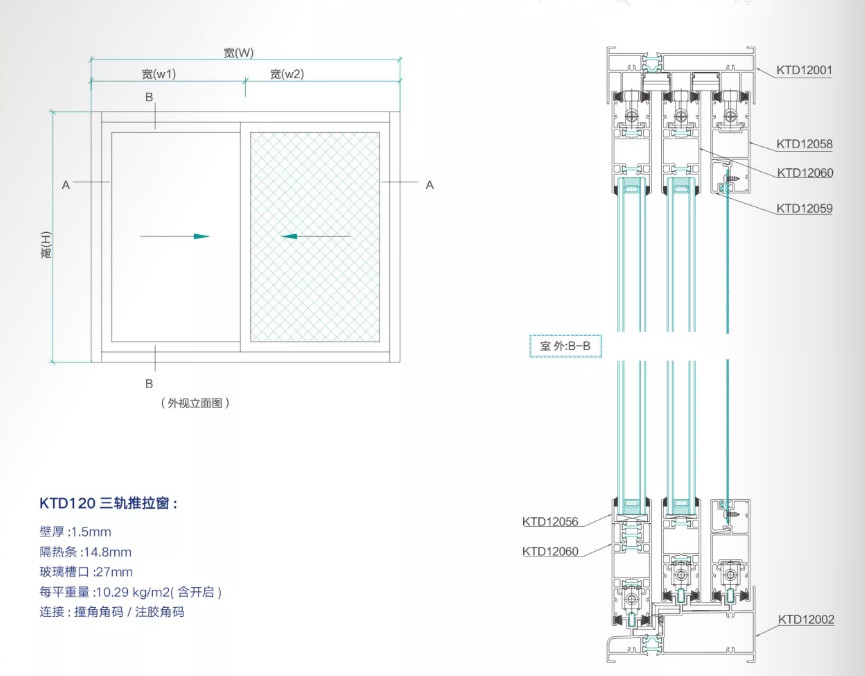

 Products Sketches:
